機臺特性/Features

人性化的機臺及系統、簡易的操作方式，友好的用戶界面?？焖偻瓿筛黜?xiàng)檢測指標，每分鐘可檢測產品高達200~300

個。檢測過程不會造成產品損壞。

Humanization of machines and systems, simple operation, friendly user interface. Our machinery and equipment are able to test with high

efficiency, they can finish testing 200 to 300 pieces of products every minute and damages will not be made during testing.

方PIN檢測項目及技術參數   Party pin test items and technical parameters

物料壓點傷

物料尺寸

物料表面臟污

物料漏加工

混料

尺寸檢測精度達到0.02mm,表面外觀檢測精

度達到0.04mm.

Damage caused by Pressure Point

Material size

Dirt on the surface

Omitted processing

Mixed materials

Size precision is 0.02 mm, surface appearance

precision is 0.04 mm.

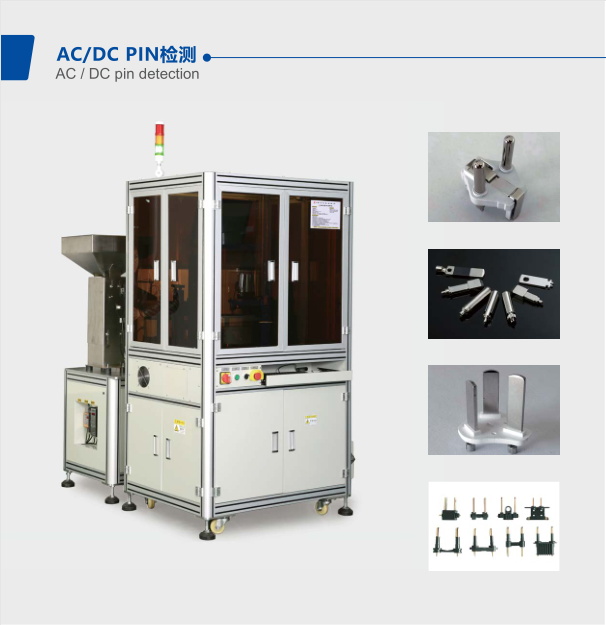

適用范圍/Range of application

適用檢測可平穩放置的AC/DC PIN五金件及注塑

組件。

Suitable for testing AC / DC pin hardware and injection

molding components that can be placed stably.

扁PIN檢測項目及技術參數

Flat pin test items and technical parameters

物料彎曲度

物料壓點傷

物料表面臟污

物料尺寸

物料漏加工

混料

尺寸檢測精度達到0.02mm,表面外觀檢測精

度達到0.04mm.

Material bending

Damage caused by Pressure Point

Dirt on the surface

Material size

Omitted processing

Mixed materials

Size precision is 0.02 mm, surface appearance

precision is 0.04 mm.

圓PIN檢測項目及技術參數/Round pin test items and technical parameters

產品尺寸

彎曲變形

漏加工

混料

Product size

Bending deformation

Omitted processing

Mixed materials

兩叉組件檢測項目及技術參數/Inspection items and technical parameters of bifurcated components

缺膠及多膠

產品尺寸

混料

Lack of glue and multi glue

Product size

Mixed materials

三叉組件檢測項目及技術參數/Trigeminal component test items and technical parameters

缺膠及多膠

產品尺寸

混料

Lack of glue and multi glue

Product size

Mixed materials
